fUNKAMATEUR aNTENNA-aNALYZER
( Antennen Analysator )

kit for self build antenna-analyzer
more information ----> www.funkamateur.de

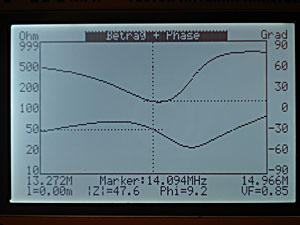

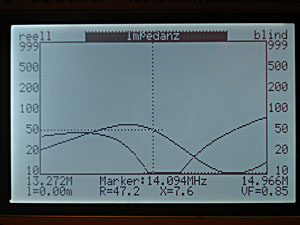

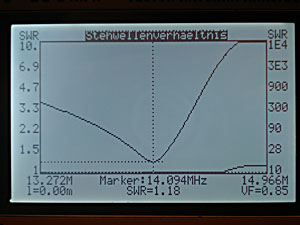

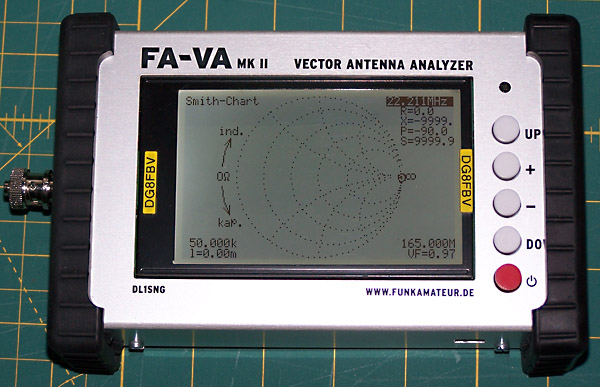

Shows Smith Chart, SWR Analyzer, RF resistance and Reactance Analyzer,

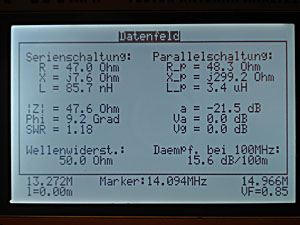

Coax Analyzer, Capacitance and Inductance Meter and more!
50 kHz - 160 MHz, selective meassurement

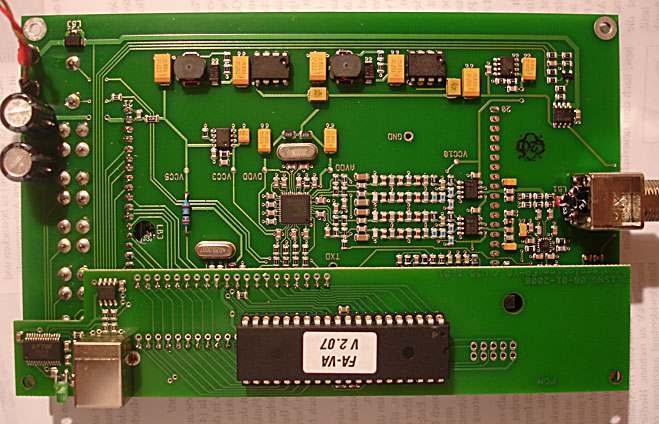

main board + USB board

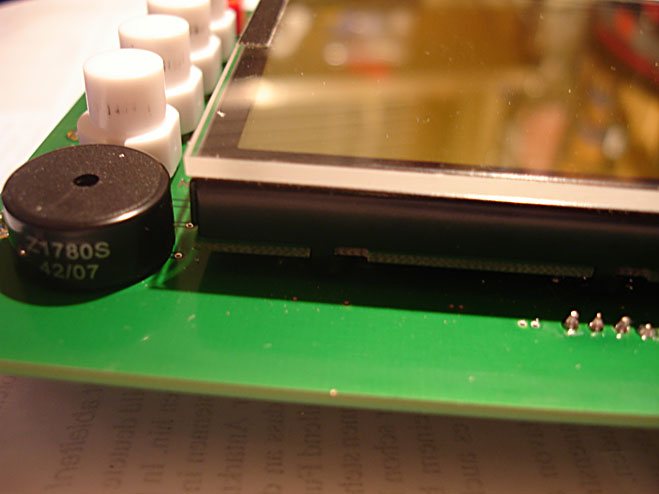

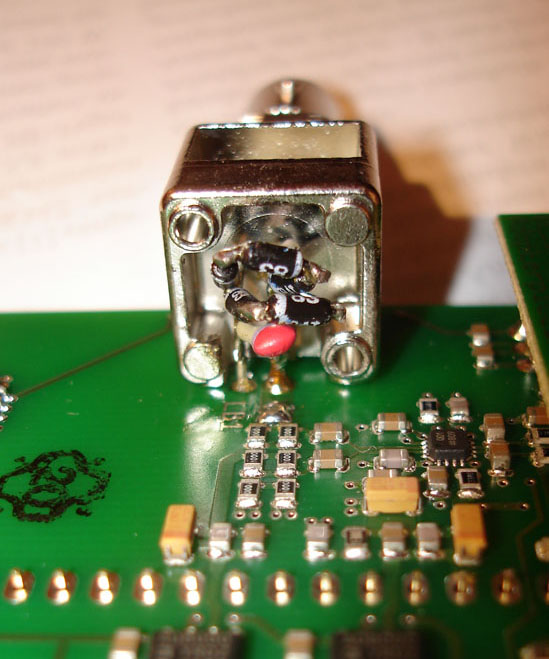

Shottky-Diodes array for static protection at BNC-Connector


glas (plexiglas) cover to protect the display

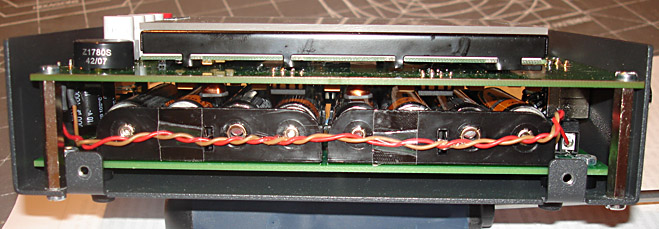

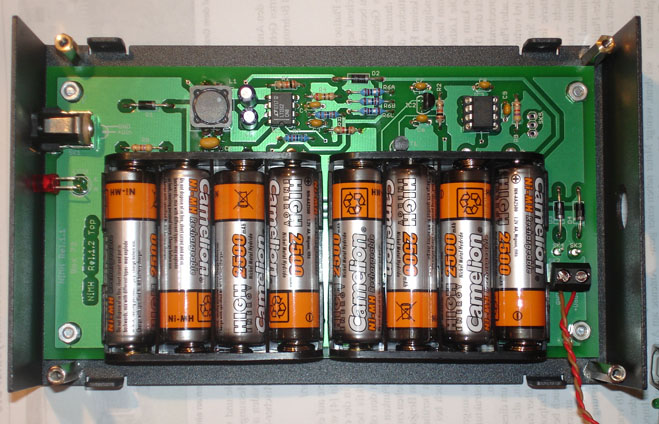

NiMH batteries with charger electronic

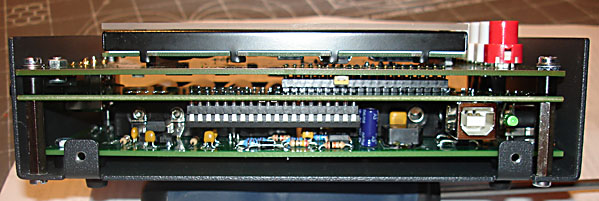

display + main board + USB board + charger board
