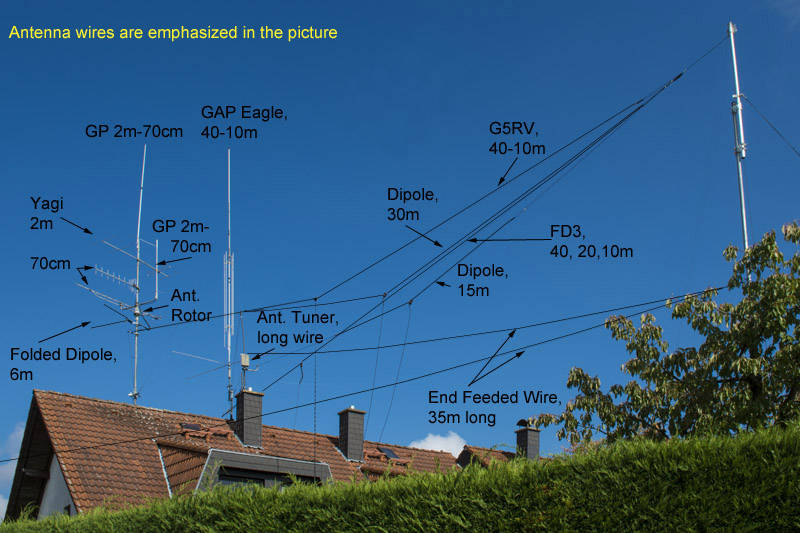

Shortwave and VHF/UHF antennas

Shortwave Antennas

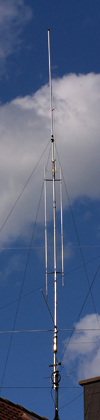

Vertical Antenna:


 40m,  20m, 17m, 15m, 12m, 10m,
 GAP Eagle DX,
 1,5 Kw




 Technical data see-->  Eagle DX


Windom Antenna:  40m, 20m, 10m,
 Fritzel FD-3 COM,
 1,5Kw/3Kw
 Total length 21m





30m-Dipol:










 30m,
 1 Kw SSB/CW

 1:1 Balun

 www.hari-ham.com

G5RV
Short Version:
 40m - 10m
 1 Kw SSB/CW


End Feeded Wire:











Automatic Antenna Tuner for end
feeded wire:

 160m - 10m,

 Wire type: DX-Wire Type F, total length 35m (16m + 19m)

 Wire is installed as a horizontal "V".
 Top View:
 L=19m V* L=16m,   *= feeding point

 Antenna wire from www.dx-wire.de

 Automatic Tuner CG3000, outdoor installation
 200 W

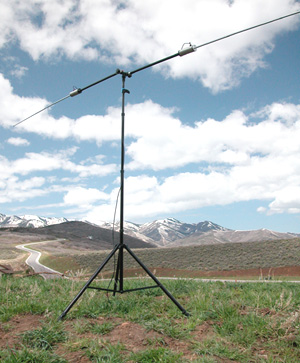

HF Portable Antenna  Buddipole, 40m - 6m, 2m



To use the Buddipole with 10 foot / 3m  MFJ-1954 telescopic whips,,,,,see --> here


Folded Dipol:  6m,
 Self build 6m folded Dipol, in reference to
Klaus Böttcher,


 description in  CQ-DL 10/2006



UHF/VHF

Yagi, 18 element, horizontal:   70 cm
Yagi, 10 element, vertical:        70 cm
Yagi,  6 element, horizontal:   2 m
Duo-Band Groundplanes:   2m/70cm,  DIAMOND  X-50 and X-300


Antenna Rotor for VHF/UHF Antennas

YAESU G-400


Antenna Cable

For VHF/UHF RG213,  for shortwave AIRCELL 7


Mobil HF/VHF/UHF Antenna

Diamond HV7CX for 7/21/28/50/144/430 MHz + 10/14 MHz


Operating Manual:   HV7CX
